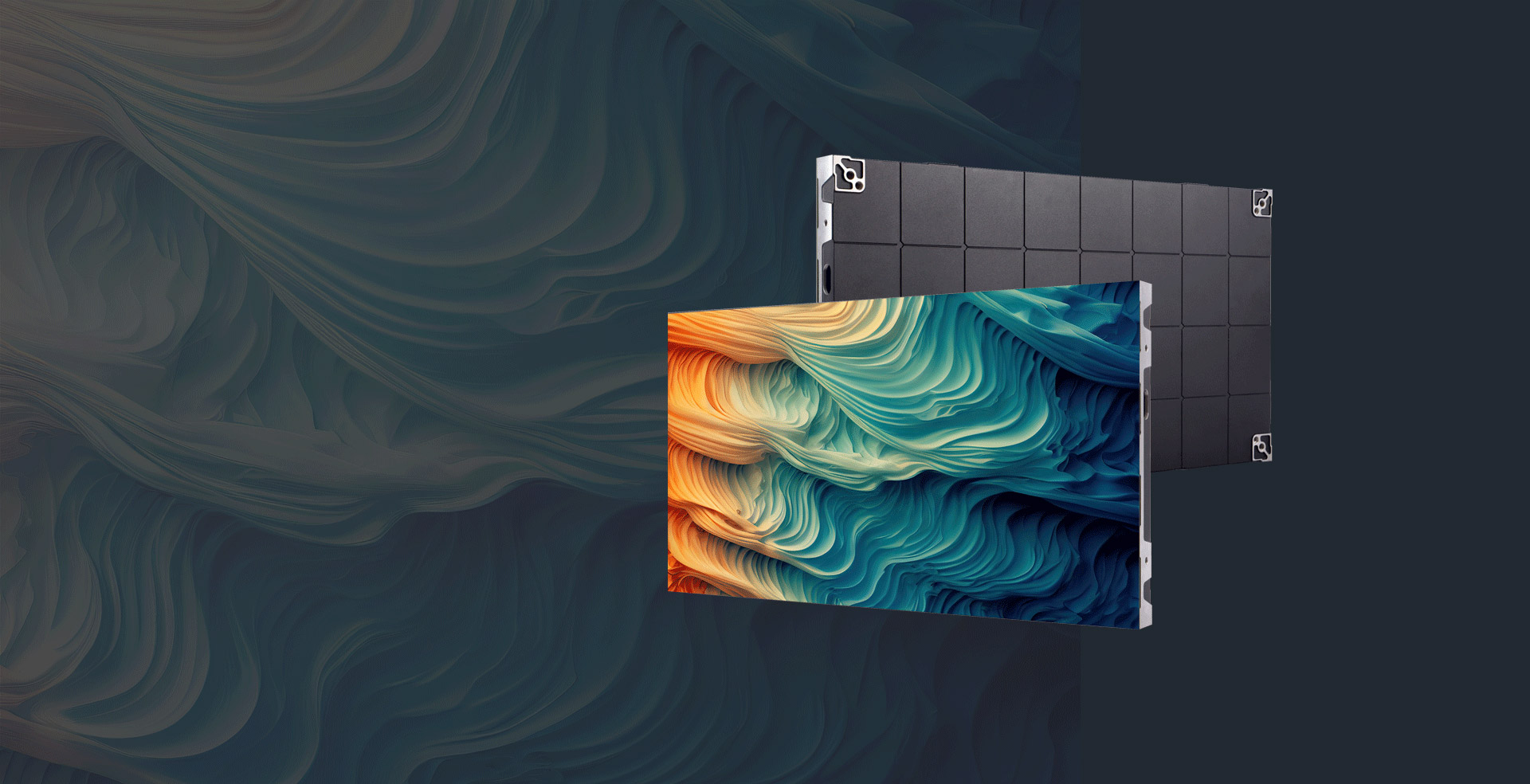

META SERIES
ULTRA-THIN LED DISPLAY
38 mm thick
No noise
Compact design
Optimised cooling system
Mini Pixel Pitch
Perfect image display from the shortest distances thanks to its Mini Pixel.
Multiple pixel sizes.
P 0.9375 | P 1.17 | P 1.25 | P 1.5625 | P 1.875 | P 2.5

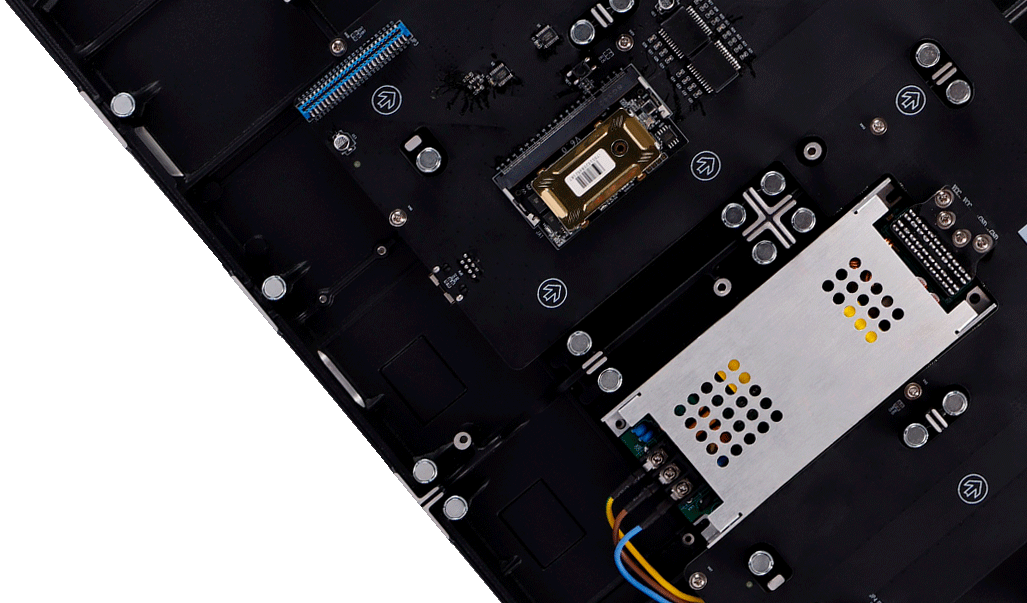

Internal Wireless HUB
Wireless connection between the various parts
Compact design
Easy to install and maintain
Front-end maintenance
More vivid and dynamic images
HDR technology
HDR
SDR
High 3840Hz refresh rate.
TECHNICAL SPECIFICATIONS
Model
BSU63L09
BSU63L11
BSU63L12
BSU63L15
BSU63L18
BSU63L25
Type of LED
4 in 1
SMD0808
SMD1010
SMD1010
SMD1515
SMD2121
Pixel Pitch (mm)
0.9375
1.17
1.25
1.5625
1.875
2.5
Cabinet Size (W*G*D) / (mm)
600 * 337.5 * 38
Cabinet Resolution
640 * 360
512 * 288
480 * 270
384 * 216
320 * 180
240 * 128
Cabinet Weight (Kg)
6.5
Module Size (W*H)/ (mm)
300 * 168.75
Brightness
600
900
900
900
1000
1000
Refresh rate (Hz)
3840
Grayscale (bit)
16 - 24
Viewing angle (H/Vº)
170 / 170
Driving Type
1/ 30
1/ 64
1/ 27
1/ 27
1/ 15
1/ 15
See more specifications
Power input (V)
100 - 240VAC
Consumption (max./average) (W/Cabinet)
135/ 40
Storage temperature
-10ºC - +60ºC
Operating temperature
-10ºC - +55ºC
Storage humidity
10% - 85%
Operating humidity
10% - 80%
Protection range
IP30
Maintenance
Front
