Crea, conecta, educa

Create, connect, educate

with SYNETECH interactive touch screens.

Up to 40 touchpoints

4K Ultra HD 60Hz

5000:1

72% NTSC

65”
75”
86”

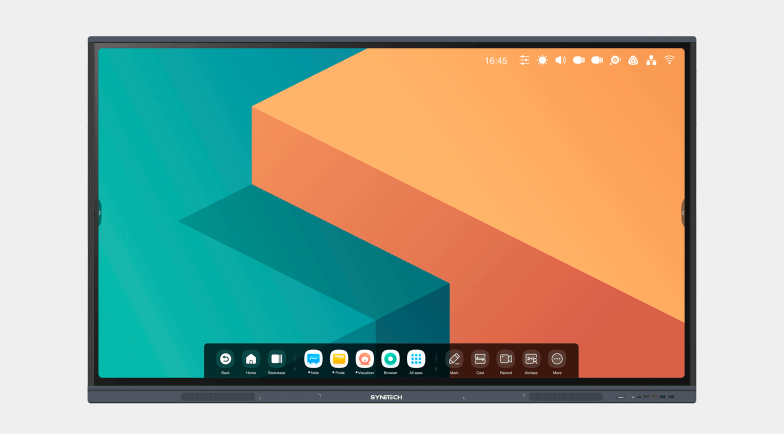

CESY 65”

Interactive Displays of 65”

Multiple connections (HDMI, USB 3.0, USB 2.0, 65W USB-C PD, RJ45, RS232, Mini Jack)

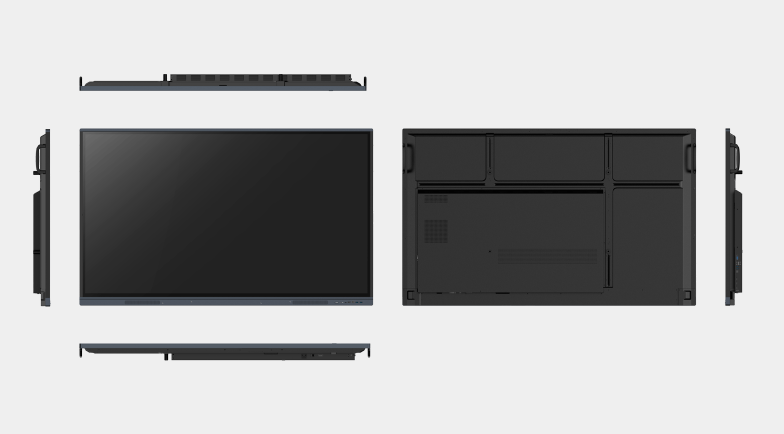

Wall or support mounting

Front speakers

Handwriting recognition (OCR system)

Pantallas Interactivas

natural and fluid touch system

Syntech's interactive displays integrate an infrared touch system with extreme precision, allowing realistic writing, either with the stylus or with the hand.

Simultaneous writing with 40 touch points on Windows (32 on Android) and two colour options.

Android 11

ADVANCED OPERATING SYSTEM

Syntech's interactive displays work with the Android 11 operating system, 4GB of RAM and 32GB of ROM, optimising usability and guaranteeing the security of the devices.

Android 11
Software Bytello

PREPARE CLASSES WITH EASE

The Bytello Class Software offers multiple interactive tools, which facilitate the preparation of classes.

Creation of 3D graphics, formulas, periodic tables, concept maps. Everything you need just a click away.

Multi-platform ACCESS

Access from any device: mobile, tablet, PC or IFP, no app required. All data is securely synchronised in the cloud.

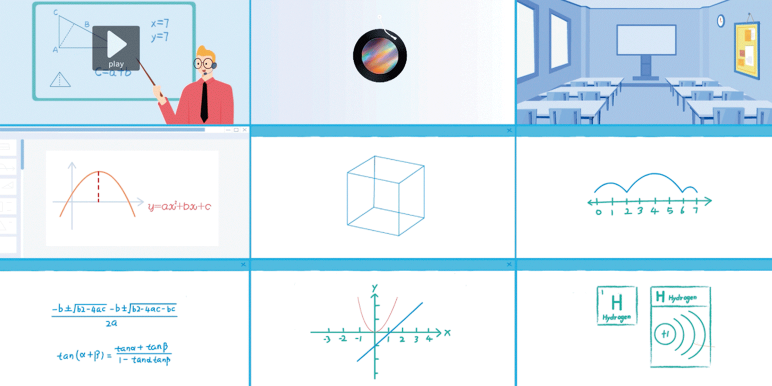

ScreenShare PRO

collaborative learning

With ScreenShare PRO from Bytello you can share your screen from different devices. Easily and securely.

Compatible with all major operating systems, it allows up to 9 screens to be shared simultaneously, where the teacher has full control over the content. You can set the volume, close a document, zoom and minimise it.

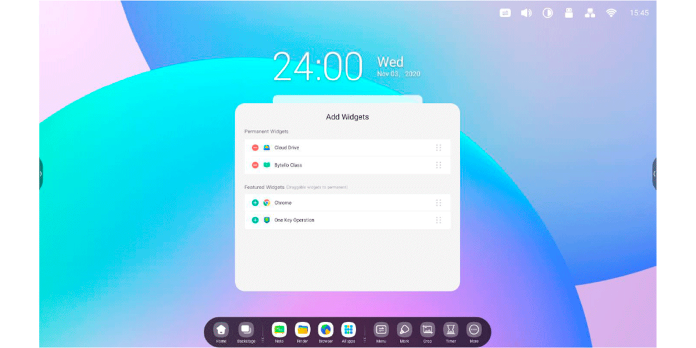

YOUR BYELLO CLASS ACCOUNT

Customise your workspace!

The integrated account management tool is cloud-based. This allows users to edit the control panel (brightness, widgets, etc.) of their account for a more secure and efficient experience.

TU CUENTA BYELLO CLASS

TECHNICAL SPECIFICATIONS

Display
Size
65 inches
Type of screen
ADS
Response time
8 ms
Aspect ratio
16: 9
Display area (mm)
1428.48(H) * 803.53(V)
Resolution
3840 * 2160
Pixel size
0.372 mm
Refresh rate
60 Hz
Colour depth
1.07B (10 bit)
Range of colours
72% NTSC
Contrast ratio
5.000 : 1
Viewing angle
178º
Brightness
400 cd/ m2
Lifespan
50.000 hours
Operating System
Version
Android 11.0
RAM
4G
ROM
32GB
CPU
A55 X 4
Touch System
Touch
IR
Contact points
40
Compatible systems
Windows 10/ Windows 8/ Windows 7/ Windows XP/ Android/ Linux/ macOS X/ Chrome
Minimal recognisable object
3 mm
Response time
< 10 ms
Touch precision
+/- 1.5 mm
Speakers
Energy
2 * 16 W
Sound pressure level
80 dB
Maximum power level
54 W
Power
Power input
100-240V - 50/ 60Hz 4.0A
Power consumption
115 W
Consumption at rest
< 0.5 W
I/O ports
HDMI IN
3
USB 2.0
1
USB 3.0
4
USB Type-C
1
AUDIO OUT
1
RS232
1
Environment
Operating temperature
0 - 40ºC
Operating humidity
20% - 80% RH
Storage temperature
-15 - 55ºC
Storage humidity
20% - 90% RH
Accessories*
Power supply
1
Digital pencil
2
Support
VESA (600 mm * 800 mm)
HDMI Cable
1
See more specifications
